Automatic Night Light Making at Home

Automated night lighting fixtures are one of the maximum famous diy domestic automation tasks.
In this educational, you may learn how to make a simple computerized night light using most effective three additives:
✔ LDR (Light Dependent Resistor)

✔ BT136 TRIAC

✔ 220K Resistor

This circuit routinely activates the ac bulb at night time and rancid at some point of the day.

How the Circuit works

This project works on the precept of light sensing and ac load switching.

Sunlight hours (mild present)

LDR resistance will become low
Gate of BT136 does not receive trigger
Ac bulb remains off

Midnight (darkness)

LDR resistance becomes excessive
Sufficient gate voltage reaches BT136
BT136 starts offevolved accomplishing
Ac bulb activates automatically

This offers you a completely automated night time light without the usage of a relay or microcontroller.

Components required

i am using this components for making it.

LDR
BT136
220k Resistor
Bulb & Bulb Holder
Wires

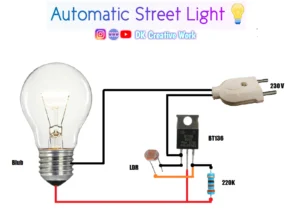

Circuit Diagram Explanation

The operating is easy:

Ac phase → BT136 mt1
BT136 mt2 → bulb → ac neutral
Gate of BT136 → 220k Resistor → LDR → ac segment

The ldr and 220k Resistor are related in collection.
This collection connection directly controls the gate pin of the BT136.
In darkness, the series resistance will increase and triggers the gate.
In light, the resistance drops and prevents the triggering.

Step-by-Step Constructing Commands

Step 1: connect BT136 with AC load

Join mt1 pin of BT136 to the ac phase.
Connect mt2 pin to the bulb terminal.
Connect the other terminal of the Bulb to AC impartial.

Step 2: LDR + 220k gate control

Connect the LDR in collection with the 220k resistor.
Join this series to the ac phase.
Connect the alternative give up to the gate pin of BT136.

Step 3: very last trying out

Cowl the LDR along with your hand → Bulb must switch on.
Shine a torch at the LDR → Bulb need to turn off.

Your automatic night mild is ready!

Safety Warning

⚠ this task uses 220v ac mains. Be very cautious.
⚠ in no way touch the circuit at the same time as power is on.
⚠ use insulation tape, gloves, and plastic enclosure for protection.
⚠ if you are a beginner, take assist from someone skilled.

Conclusion

Using just an LDR, BT136 triac, and 220k resistor, you can easily make an automatic night lamp that works flawlessly at home. It is easy, reasonably-priced, and reliable — top notch for diy novices and students.
