How To Make Stun Gun for Woman Safety
Today I am going to show you how to make a self-defense machine, the name of this device is stun gun, it is a portable device which gives out electric shock, you can also make it at home, girls can use it for their safety.
Require Component
i am using this components for making this –
- 400kv Voltage Booster – https://amzn.to/3IjqLid
- Push Switch – https://amzn.to/4pFmlSb
- 3.7v Lithium Battery – https://amzn.to/3ZnuCiV
- Nut Bolt –
- Card Board –
Circuit Diagram

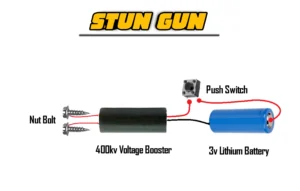

This is the circuit diagram of stun gun-
Step By Step

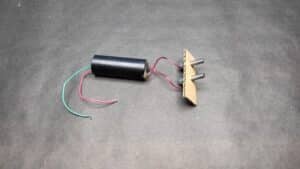

First, we will solder all the electronic components according to the circuit diagram. First, we will attach a nut bolt to the wire next to it and then attach a switch to the 400kv red wire. If you are not able to understand, you can watch this video 👇
After this we will connect the 3.7v battery, connect the switch to the positive (+) of the battery and connect the wire of the 400kv voltage booster to the negative (-) of the battery.
Then we will fix it in a box made of plastic or cardboard as per our requirement, make sure that the switch is off, if you have started it once then discharge it with the help of an electric tester, after that fix all these boxes.

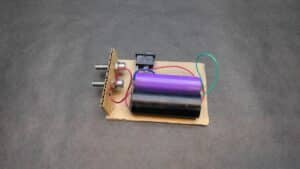

We have fixed it in the cardboard and it looks something like this 👆 Now we will pack it in the cardboard

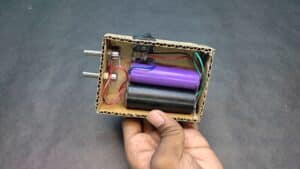

Once fully built, it looks something like 👇 this.
Educational Purpose Disclaimer
This article is written strictly for educational and informational purposes. The content is intended to give an explanation for basic electronic concepts and sell consciousness about girls’s safety. It does not inspire or train the construction, use, or misuse of any weapon or dangerous device.
Legal & Safety Disclaimer
The manufacture, possession, or use of stun guns or comparable self-defense gadgets can be limited or illegal in sure regions. This article does now not promote or endorse the making or use of such gadgets. Readers are strongly suggested to test and follow their nearby legal guidelines, protection rules, and legal requirements before attempting any test. The writer and internet site shall not be held responsible for any damage, damage, or prison outcomes as a consequence of the use or misuse of the information supplied.
