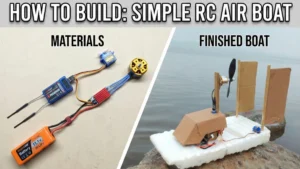

How To Make Powerful RC Air Boat
Hello friends today we are going to make RC air boat, this boat is power full boat, if you want to make it, then see full video, if you want to make it, then below is the circuit diagram
Required
In this we have used these components –
-
Servo Moter – https://amzn.to/3krnmOv
-
11.1V Lipo Battery – https://amzn.to/3z6nau2
-
1045 Propeller – https://amzn.to/3z0NfdQ
-
Brazzless Moter – https://amzn.to/3CYe9Wh
-
30Amp. ESC – https://amzn.to/3y2d8bN
-
Transmitter & Receiver – https://amzn.to/384YtSA
-
FoamBoard –
To make this RC Car we are going to use Flysky Fs-I6 2.4G 6Channel transmitter and receiver.
We will make a wooden frame to fit the motor so that the motor remains stable even when running at high speed
You need to cut the cardboard in such a shape that it remains aerodynamic.

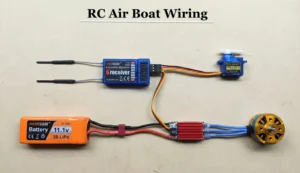

Circuit Diagram
You have to do the wiring by looking at this circuit –
In this we have installed brassless motor in channel no.3 and servo motor in recevier no.4
